Single Flotation Cell
Laboratory Single Flotation Cell / Laboratory Flotation Cell / Laboratory Flotation Machine / Laboratory Flotation Separator / Laboratory Ore Flotation Equipment
Description
XFD Series Single Flotation Cell can be used for mixing, separation, cleaning, mineral sample concentration in the laboratory room of mineral processing plant, universities and research institutions, and also in geology, metallurgy, construction, chemistry, and coal industry.

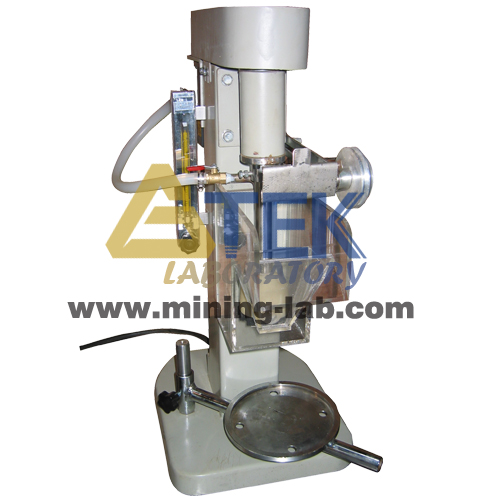

XFD-I Single Flotation Cell
Technical Specification
| Model | Cell Vol. (L) |
Impeller Dia. (mm) |
Impeller Speed (r/min) |
Scraper Speed (r/min) |
Feed Size (mm) |
Pwr (W) |
Wght (kg) |
Dimensions (LxWxH) (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| XFD-0.5 | 0.5 | Φ45 | 2130/2340/2590 | 30 | -0.2 | 180-250 | 30 | 360 | 260 | 700 |
| XFD-0.75 | 0.75 | Φ45 | 2130/2340/2590 | 30 | 30 | 360 | 260 | 700 | ||
| XFD-1 | 1 | Φ55 | 1700/1900/2590 | 30 | 35 | 360 | 260 | 700 | ||
| XFD-1.5 | 1.5 | Φ60 | 1590/1750/1910 | 30 | 40 | 490 | 280 | 800 | ||
| XFD-3 | 3 | Φ70 | 1544/1708/1890 | 30 | 50 | 490 | 280 | 800 | ||
| XFD-8 | 8 | Φ80 | 1400 | 30 | 80 | 700 | 360 | 760 | ||

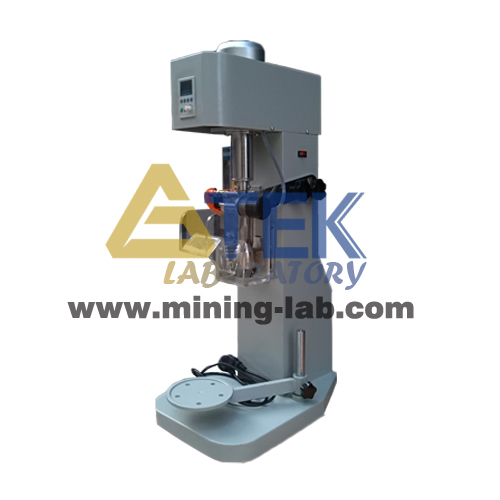

XFD-II Single Flotation Cell
Product Advantages
1. Converter technology, stepless speed adjustment of impeller and with LCD digital display;
2. Easy and accurate adjustment, reliable operation;
3. Liquid level and air filling volume adjustable, with speed digital display device and water make-up device.
Technical Specification
| Model | Cell Vol. (L) |
Impeller Dia. (mm) |
Impeller Speed (r/min) |
Scraper Speed (r/min) |
Feed Size (mm) |
Pwr (W) |
Wght (kg) |
Dimensions (LxWxH) (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| XFDII-0.5 | 0.5 | Φ45 | 0-2780 stepless |
15/30 | 0.04-0.25 | 120 | 30 | 360 | 260 | 700 |
| XFDII-0.75 | 0.75 | Φ45 | 15/30 | 120 | 30 | 360 | 260 | 700 | ||
| XFDII-1 | 1 | Φ45 | 15/30 | 120 | 30 | 360 | 260 | 700 | ||
| XFDII-1.5 | 1.5 | Φ45 | 15/30 | 120 | 32 | 490 | 280 | 800 | ||

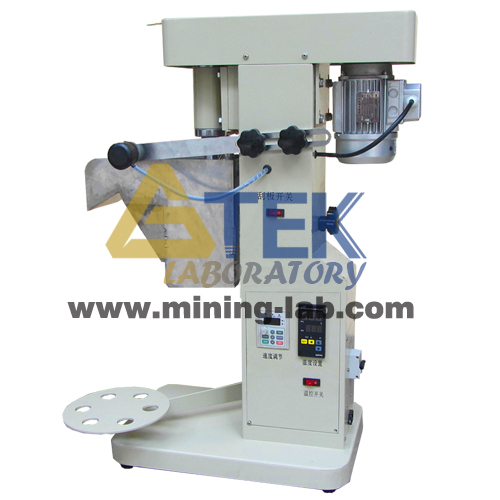

XFD-III Single Flotation Cell
Product Advantages
As a new generation of XFD products, XFDIII Single Flotation Cell has the following features:
1. Introduces converter technology, stepless speed regulation of impeller and digital display;
2. Self gas suction is changed to gas inflation from outside. Accurate adjustment is available. Displaying is clear and stable;
3. Equipped with micro-computer controlled heater, which is available for real-time adjustment and displaying of temperature. Ore liquid can be kept at optimal temperature level according to requirements.
Technical Specification
| Model | Cell Vol. (L) |
Impeller Dia. (mm) |
Impeller Speed (r/min) |
Scraper Speed (r/min) |
Feeding Size (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| XFDIII-0.5 | 0.5 | Φ45 | 0-2800 stepless |
15 | 0.05-0.2 | 30 |
| XFDIII-0.75 | 0.75 | Φ45 | 15 | 30 | ||
| XFDIII-1 | 1 | Φ55 | 15 | 30 | ||
| XFDIII-1.5 | 1.5 | Φ60 | 15 | 30 | ||
| XFDIII-3 | 3 | Φ70 | 15 | 38 |
