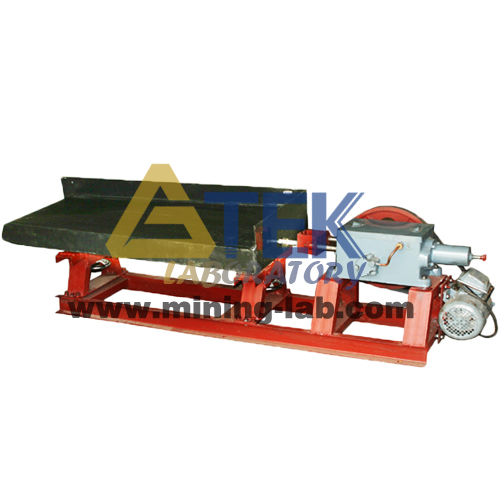

Laboratory Shaking Table

Laboratory Jerking Table / Laboratory Table Concentrator / Laboratory Shaking Concentrator / Laboratory Shaking Concentrate Table / Laboratory Gold Shaking Table


LY shaking table is suitable for technical research and development of laboratories in schools, colleagues and universities. It can also be used as a gravity equipment in pilot plant or small scale mineral processing plant. The effect of LY shaking table is almost same as that of big size shaking table. LY shaking table features high enrichment ratio, compact structure and reliable operation.

Technical Specification

Specification of Laboratory Shaking Table
Model -- LY2100×1050 LY1100×500
Deck Size mm 2100×1050×850 1100×500×430
Stroke mm 12-28 9-17
Frequency times/min 250-450 280-460
Transverse Tilt of Deck ° 0-8 0-10
Feeding Size mm 0.074-2 0.074-2
Feeding Density % 10-30 10-30
Processing Capacity t/hr 0.3-0.8 0.05-0.2
Water Consumption t/hr 0.2-1 0.1-0.5
Motor Power kW 1.1 1.1
Dimensions mm 3400×1050×1020 1530×500×800
Weight kg 450 150
Laboratory Shaking Table
Laboratory Shaking Table
