Cycle Pulsating High Gradient Magnetic Separator

Laboratory Magnetic Ore Separator / Laboratory Cycle Pulsating Magnetic Separator / Laboratory High Gradient Magnetic Separator


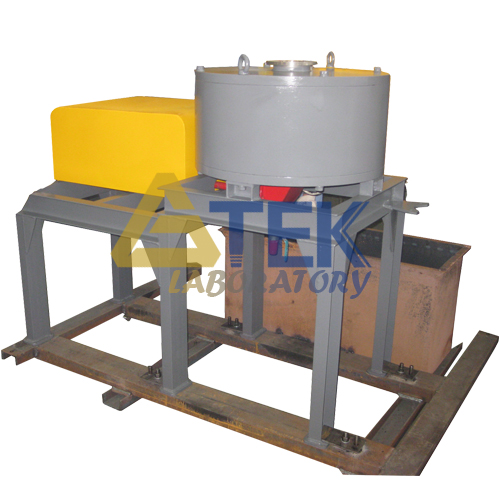

GTEK 100 cycle-type pulsating high gradient magnetic separator, is rated with a background field 1.2T, 1.7T respectively. This machine can be used for a small laboratory test or for a small amount of configuration minerals. It is suitable for wet separation of metallic ores with weak magnetic attractions, and can also be used for purification of iron from non-metallic minerals. It is equipped with a pulse mechanism, stroke, stroking distance and background magnetic field can be continuously and infinitely variably adjusted in a larger range. The machine has been used in laboratories in a number of research institutes, universities, and large mining companies worldwide.


1. High enrichment ratio and separation efficiency;
2. Not easy to be blocked, strong adaptability to fluctuation of feed size, concentration and grade;
3. Reliable operation and easy maintenance.

Technical Specification

Specification of Cycle Pulsating High Gradient Magnetic Separator
Major Parameters

100 (background field 0~1.7T)

100 (background field 0~1.2T)
Separation Chamber
Ф100×100 Ф100×100
Size of Ore-feeding
(mm) (-200 mesh %)
-1.3(50~100) -1.3(50~100)
Concentratoin of Ore-feeding (%) 5~40 5~40
Capacity of Ore Process (g/cycle) 100~600 100~600
Background Field (T) 1.7 1.2
Energizing Current (A) 0~1800 0~1200
Energizing Voltage (V) 0~28 0~16.4
Energizing Power (kW) 0~50.4 0~19.7
Pulsating Power (kW) 0.75 0.55
Pulsating Stroke (mm) 0~30 0~30
Pulsating Frequency (r/min) 0~600 0~600
Water Supply Pressure (MPa) 0.15~0.2 0.15~0.2
Weight of Machine (kg) 2500 2200
Demensions L×W×H(mm) 1800×800×1700 1600×800×1600
Cycle Pulsating High Gradient Magnetic Separator
Cycle Pulsating High Gradient Magnetic Separator
