Laboratory Magnetic Ore Separator / Laboratory Dry Magnetic Separator / Laboratory High Intensity Magnetic Separator / Laboratory Roll Magnetic Separator

Description

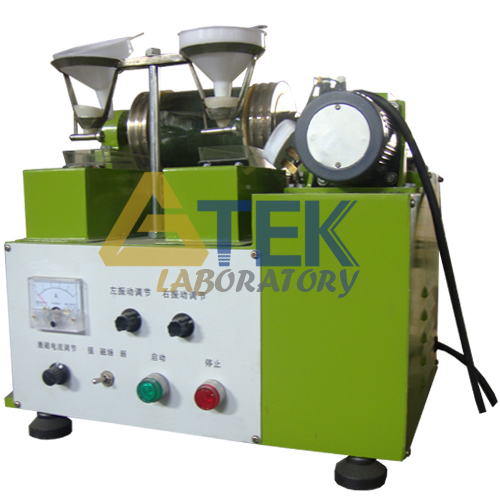

XCQG Dry High Intensity Roll Magnetic Separator is applicable to dry separate weakly or strongly magnetic minerals in labs of research institutes, geological prospecting units in metallurgical, geological, building material industries. It introduces a close magnetic circuit with double working face and comprises Excitation System, Driving Mechanical Feeding System and Product Clean-up and Collection System. Electromagnetic vibrating feeder delivers minerals to separation area and allow the minerals to automatically be divided to magnetic and non-magnetic minerals by controlling magnitude of magnetizing current when passing through magnetic gaps for discharge, achieving the separation effect.

Technical Specification

Specification of Dry High Intensity Roll Magnetic Separator

Model		XCQG120×(30+30)
Roll Size (mm)		Ф120×(30+30) double-side
Magnetic Intensity (MT)		1400 (14000 GS) adjustable
Impeller Diameter (mm)		55
Roll Rotating Speed (r/min)		4,6,8 adjustable
Pole Pitch (mm)		33
Capacity (kg/hr.)		5-25
Feeding Size (mm)		0-5
Power (VA)		500
Overall Dimensions	Length (mm)	360
	Width (mm)	450
	Height (mm)	460
Weight (kg)		75
